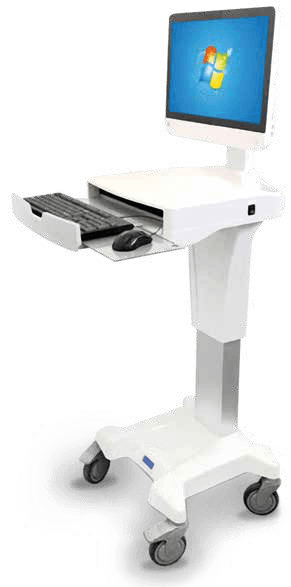

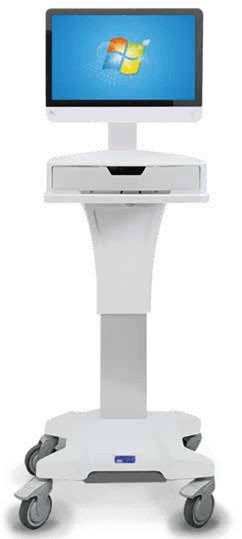

EZ-Line Powered Cart

Mobile EMR workstation with a zero-downtime battery system

The powered EZ-Line cart weighs just 25 kg including batteries and powers any DC all-in-one PC through a full shift. The battery drawer is swapped by the user in minutes, so your EMR workstation is never out of service.

Highlights

Unique hot-swappable battery drawer, zero downtime
Electric height adjustment for sitting or standing work
Seamless antibacterial ABS surfaces
UV LED inside the keyboard drawer
Small footprint, easy manoeuvring in crowded rooms

Request a quote for this cart

Specifications

Weight (with batteries): 25 kg
Battery: LiFePO4 300 W or 600 W, 3,000 cycles, 13–24 working hours
Power input / output: 110–220 V input, 12 V / 19 V output
Base size: 60 × 50 cm (23.6" × 19.7")
Work surface height range: 81–126 cm (45 cm adjustment)
Work surface: 50 × 50 cm, antibacterial ABS
Lift: Electric, 1000 N (about 100 kg)
Monitor arm: VESA tilt, up to 24" / 16 kg display
Casters: 5" (12.7 cm), 2 locking
UV: Germicidal UV light inside the keyboard compartment
Computer compatibility: Any DC-powered, VESA-compatible all-in-one PC
Warranty: 2 years

Options & configurations

UV keyboard drawer
Baskets and storage
Medication drawers
4- or 5-tier medication cabinet with electric PIN-code lock
Sealed medical keyboard and mouse

The details

Designed down to the last detail

Easy-to-install monitor

VESA tilt mount (up/down, left/right) slides into the monitor arm bay and takes any all-in-one PC up to 24 inches.

Large workspace

50 × 50 cm antibacterial ABS surface for safe medication preparation. Easy to clean and to implement infection control.

Slide-out keyboard drawer

Left/right mouse pad and a germicidal UV light (380 nm safe wave) that switches on while charging to keep keyboard and mouse germ-free.

Flexible

Convert any basic cart into a medication-dispensing cart by adding a 4- or 5-tier medication cabinet with an electric PIN-code lock.

Electric height adjustment

Electric lift with a 45 cm range and a 100 kg load capacity, for comfortable work sitting or standing.

Green battery

LiFePO4 battery for 13 and up to 24 working hours, 3,000 life cycles, fast charging. Swap the compartment in minutes with no downtime. Clear LCD status.

Compatible accessories

Medical keyboard

IP68 / IP65 silicone rubber or plastic keyboards: waterproof, oil-proof and dust-proof, fully washable and disinfectable between patients.

Medical mouse

Sealed, washable mouse with a smooth seamless surface, designed for frequent disinfection in clinical environments.

UV keyboard drawer

Pull-out keyboard drawer with a built-in UV LED that helps keep the keyboard and mouse germ-free while the drawer is closed.

Spare battery drawer

An additional battery drawer for instant user replacement. Keeps the cart running 24/7 without waiting for a technician.

Baskets and storage

Baskets, shelves and holders for consumables, documents and devices that attach to the cart's modular frame.
